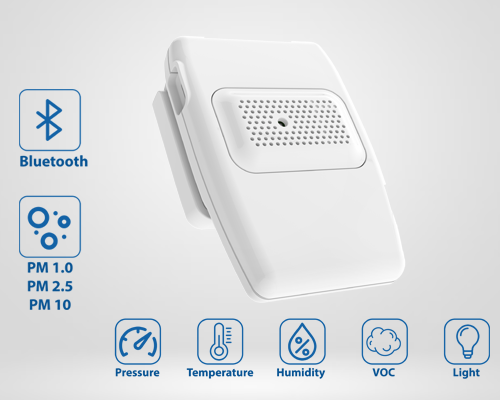

HibouAir PM monitor - SSD002/1B

HibouAir - Your Ultimate Particulate Matter Monitor

Breathe Freely with Real-Time PM Monitoring

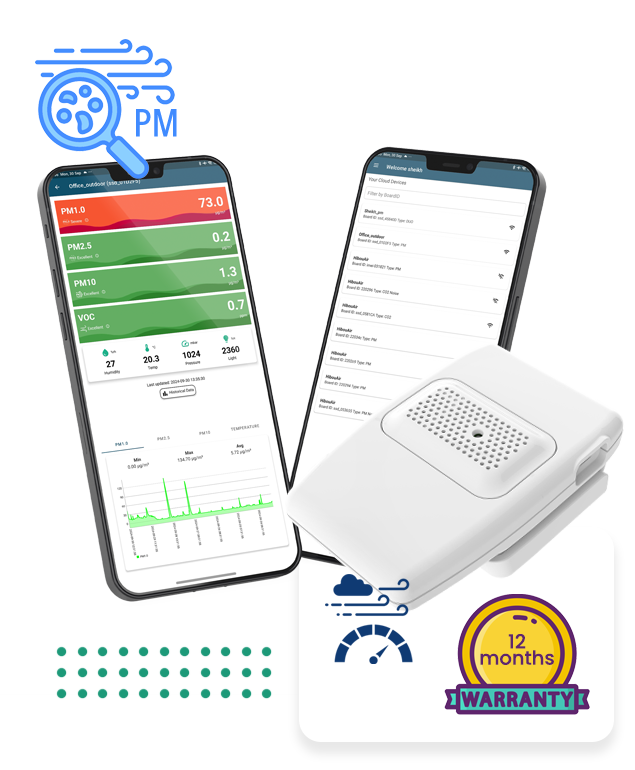

Step into the future of indoor living with HibouAir PM – the advanced air quality monitor that goes beyond the ordinary. Our cutting-edge device integrates state-of-the-art sensor technology with user-friendly applications to empower you in creating a healthier and more comfortable indoor environment.

Our advanced PM sensor constantly measures the concentration of PM1.0, PM2.5, and PM10 in your surroundings, ensuring you're always aware of the air you're breathing. In addition to PM, our device measures ,Ambient pressure, Ambient temperature, Relative humidity, Ambient light, and VOCs, providing a complete snapshot of your indoor environment. By keeping a watchful eye on PM levels, you can take proactive measures to minimize exposure and create a space where you can truly thrive. Whether you're at home, in the office, or any indoor setting, HibouAir PM empowers you to take charge of your air quality.

Indoor air quality monitor PM





Specifications : HibouAir - Air Quality Monitor PM Sensor - SSD002/1B
CONNECTIVITY Bluetooth 5.1
ROLES Bluetooth v5.1 Peripheral
POWER +5VDC input on micro USB connector.
AVERAGE CURRENT CONSUMPTION Type 35mA
SENSORS
  • Particulate Matter (PM1.0 , PM 2.5 & PM 10): resolution 0.3 µg/m3 . Max Error ± 15%
  • Temperature, range: 0…50°C Accuracy: ± 1°C
  • Humidity, range: 0…100% r.H. Accuracy: ± 3 % r.H.
  • VOC (Organic Compounds) : IAQ index & ppm
  • Pressure, range: 300…1100 hPa ± 0.6 hPa
  • Ambient light: resolution 100mLux
MECHANICAL 73,2 mm (L) , 50 mm (W) 12,4 mm (D)
ENVIRONMENTAL Temperature: 0°C to 50°C
Humidity: 95%
Ingress Protection: IP22 (Indoor use and Outdoor with extra protection case)
MOUNTING Wall mounted holder.
CASE MATERIAL ABS
CERTIFICATION FCC & CE, RoHS compliant, halogen-free
PART NUMBER SSD002/1B
ACCESSORIES
  • HibouAir USB dongle (SSD005)
  • Power adapter
  • USB power cable (3 meter)
HibouAir - PM Air quality monitor
